Rural Energy Project Success Stories

How rural Alaska communities are benefiting from renewable energy projects

Rural Energy Program
(907) 729-3600
energy@anthc.org

ANTHC partners with rural communities across Alaska to find innovative solutions to reduce the high cost of heating water and sewer facilities.

Through a variety of renewable energy and energy efficiency upgrades, these communities have become more self-reliant, energy efficient and sustainable.

Here are just a few of their success stories:

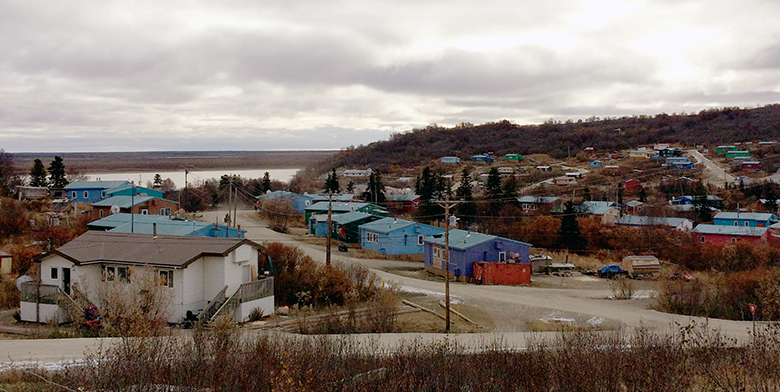

Energy Efficiency: Pilot Station

casestudy03

In 2014, ANTHC completed energy efficiency work on the local water and sewer system in Pilot Station. Since these retrofits were implemented, the community has seen a 66 percent reduction in fuel use and a 33 percent drop in kilowatt hour (kWh) consumption compared to the initial energy audit in 2012.

This project is expected to save the community more than 1,000 gallons of fuel oil and 25,000 kWh annually for a combined annual savings of $11,090, including an $8,750 annual savings to the Power Cost Equalization (PCE) program.

Upgrades included cleaning of the boilers, upgrading hydronic controls, replacing lights with LEDs, rerouting plumbing and minor building weatherization. Training was provided to the local operator, which included boiler run times, setting and maintaining proper operational parameters and preventative maintenance schedules.

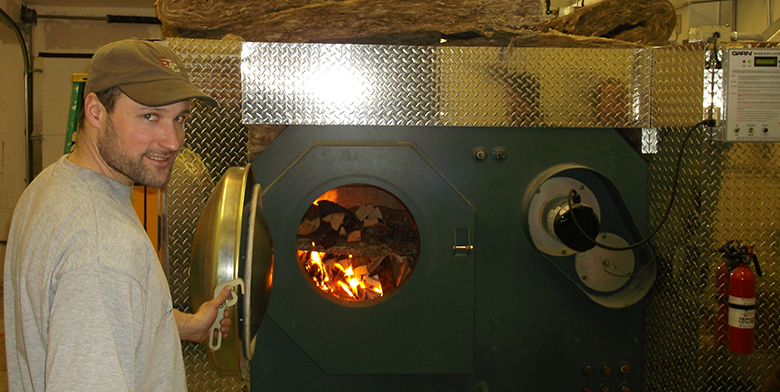

Biomass: Kobuk

casestudy02

Biomass projects use wood fired boiler systems that displace fuel oil for heating public facilities. Using locally harvested wood in the heating system, instead of fuel oil, keeps energy dollars in the local economy and reduces the dependence on fuel oil for heating. These benefits promote energy sustainability and provide the added benefit of creating new jobs for local wood cutters in rural communities, where employment is hard to come by.

In 2013, Kobuk received funding through the state’s Alaska Energy Authority to design and construct a biomass boiler to heat the community’s water system. Thanks to the combined efforts of ANTHC’s Rural Energy Initiative team, ANTHC’s Alaska Rural Utility Collaborative, NANA Regional Corporation, the City of Kobuk and the Kobuk Traditional Council, it is anticipated that the Kobuk biomass project will help the community’s water treatment plant save $24,000 annually.

Of the overall $24,000 annual savings, $10,500 goes to local wood cutters for supplying cordwood and $13,500 will be the direct savings to the operation of the Kobuk Water Plant.

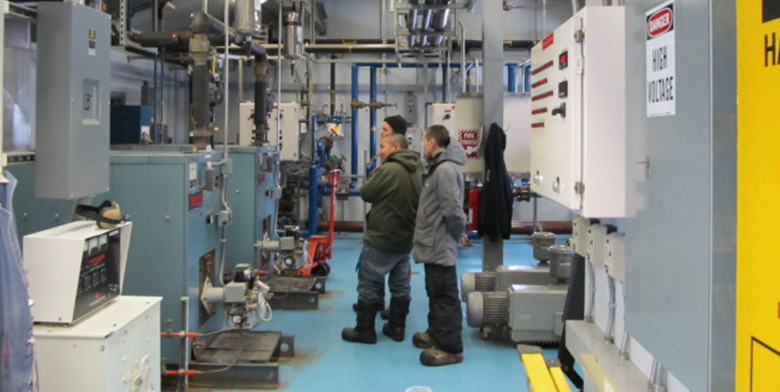

Heat Recovery: Savoonga

casestudy04

In a heat recovery system, excess heat energy is captured from the local electric plant and transferred to heat the water plant instead of burning heating fuel, which results in substantial cost savings for both utilities. The heat in the electric plant is created as a byproduct of diesel-powered electricity generators. Since the installation of these heat recovery systems in communities, there are tremendous results in energy savings from reducing fuel oil consumption.

In collaboration with the Alaska Energy Authority, Alaska Village Electric Cooperative and ANTHC’s Alaska Rural Utility Collaborative program, a heat recovery project was completed in Savoonga in October 2014. This project took previously unutilized energy from the power plant and redistributed it to the water treatment plant.

From the time the system was installed to March 2015, it reduced fuel usage by 90 percent, displacing 1,686 gallons of heating oil or about $7,166 in energy savings.

With the system now fully operational, it is expected that the community will reduce their heating fuel usage by 8,800 gallons of fuel, for a savings of almost $40,000 per year.

Wind to Heat: Mekoryuk

casestudy05

“Wind to Heat” systems use the extra electricity generated from wind turbines during peak wind events to heat water for use in Arctic sanitation systems. Wind energy is transferred through use of electric boilers in the water treatment plant and displaces fuel used to heat the water.

The cost of $0.05 per kWh is equivalent to fuel oil at $1.46 per gallon. Since Oct. 23, 2014, the wind to heat system in Mekoryuk has transferred 9,252 kilowatt-hours. By estimation, these savings are only the beginning of decades of continual savings to public sanitation systems in these underserved, remote communities with a potential fuel savings of $40,000 annually.

Hydroelectric: Ouzinkie Dam

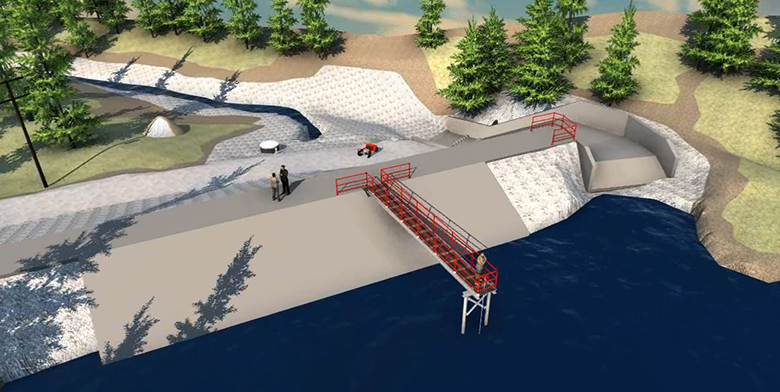

Ouzinkie’s hydroelectric dam
Ouzinkie’s hydroelectric dam

Water systems often share infrastructure with hydroelectric facilities. Combining public water and power facilities reduces capital costs associated for both sanitation and power infrastructure, with compounded benefits for the community.

The Ouzinkie Dam project was completed in 2014. The $2.3 million project replaced a deteriorating wooden dam constructed in 1986 with a new, state of the art concrete faced rock-fill facility built to withstand magnitude 8.8 earthquakes and major floods, while efficiently providing clean water and affordable hydroelectric power to residents.

Construction on this project allowed the community to continue producing 30 percent of its electricity from hydroelectric power, or 300,000 kWh/year, with a diesel offset of 24,584 gallons of diesel or $148,240 per year.

ANTHC completed and submitted a feasibility study to Alaska Energy Authority’s Renewable Energy Fund Round 8 to upgrade the city owned hydro turbine that would further enhance this project.

The application identified an additional potential electrical generation of 100,000 kWh through an improved turbine and penstocks for an additional annual savings of $46,382.

Solar: Beaver

Beaver’s solar project added 30 new panels.
Beaver’s solar project added 30 new panels

The community of Beaver upgraded its solar power system in partnership with ANTHC. The project was funded by a U.S. Department of Agriculture Rural Development grant that provided solar energy technology for rural Alaska communities’ water treatment plants.

The project added 30 new solar panels to the 14 panels that were already installed,with the goal to eventually eliminate the need for diesel fuel, which is expensive and costly to ship. There was a time when Beaver was heavily in debt, but today the community is debt-free. Solar power helps the village water plant operate at a cost sustainable level, which contributes to the health of the community budget and residents.

ANTHC Environmental Health and Engineering led the solar project in Beaver and seven other communities that benefited from the $653,950 grant to install solar photovoltaic arrays at water treatment facilities. The communities of Allakaket, Holy Cross, Newhalen, New Stuyahok, Pitkas Point, Russian Mission and Sleetmute, along with Beaver, expect to see an annual savings of an estimated $62,000 in electricity costs. The average savings per community is $7,726 annually.

Ground Source Heat Pump: Metlakatla

Metlakatla’s Lepquinum Wellness Center and pool is heated by a ground source heat pump.
Metlakatla’s Lepquinum Wellness Center and pool is heated by a ground source heat pump.

The constant temperature of subsurface earth is a renewable energy resource that can be harnessed by ground source heat pumps. These pumps employ a geothermal loop that extracts heat from the earth and transfers it to a facility’s heating system.

The Lepquinum Wellness Center in Metlakatla provides health care and wellness services to residents. It also has a pool, locker room, activity room, handball court and classroom space, all heated by a ground source heat pump system.

Metlakatla’s ground source heat pump has reduced the overall energy and operating costs of the Lepquinum Wellness Center by 73 percent, or $203,000, annually. The system displaces 47,200 gallons of heating oil per year, a savings that will go to support other public programs and services.

Remote Monitoring: Ambler

A remote monitoring dashboard that can be accessed from a computer anywhere, showing the water treatment plant statistics.
A remote monitoring dashboard that can be accessed from a computer anywhere, showing the water treatment plant statistics.

Catching issues early in a water treatment plant can prevent potential catastrophic failures and costly repairs to the facility. Remote monitoring is one system that helps detect issues by using small wireless sensors in key locations in the water plant that keep tabs on system temperatures, flow rates, water level and pressure. Data from the monitors enable local operators and technicians outside the community to identify problems such as freeze-ups and track system performance for future energy audits and retrofits. More than 50 rural Alaska communities have installed remote monitoring systems and more are slated for installation.

With remote monitoring in place at the Ambler water treatment plant, ARUC’s technicians were able to identify a leak when one of the monitors showed a spike in water flow. The leak was patched in less than 24 hours, preventing a critical loss of water or damage to the system. Without the early warning provided by remote monitoring, Ambler residents might have been without water for an extended time and repair costs could have been as high as $300,000.

The remote monitoring program recently received the Good Neighbor Green Champion Award from the U.S. Department of Health and Human Services. The award recognizes federal and/or Tribal employees or groups that demonstrate measurable results in integrating sustainable principles into daily operations.

To see Remote Monitoring in use across Alaska, visit our webpage at http://rm.anthc.webfactional.com/map/.
